Cracked turbine housing?
Cracked turbine housing?

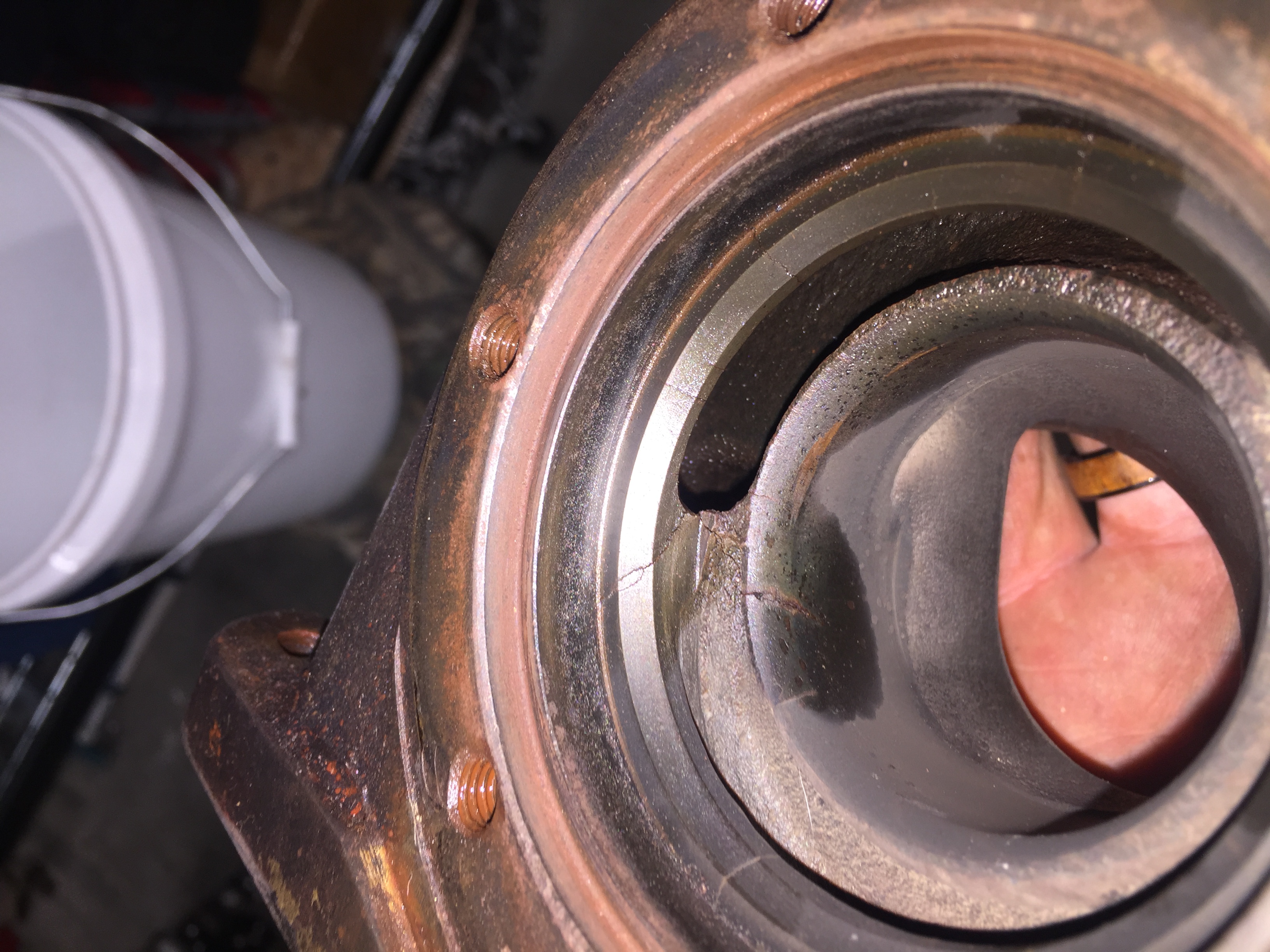

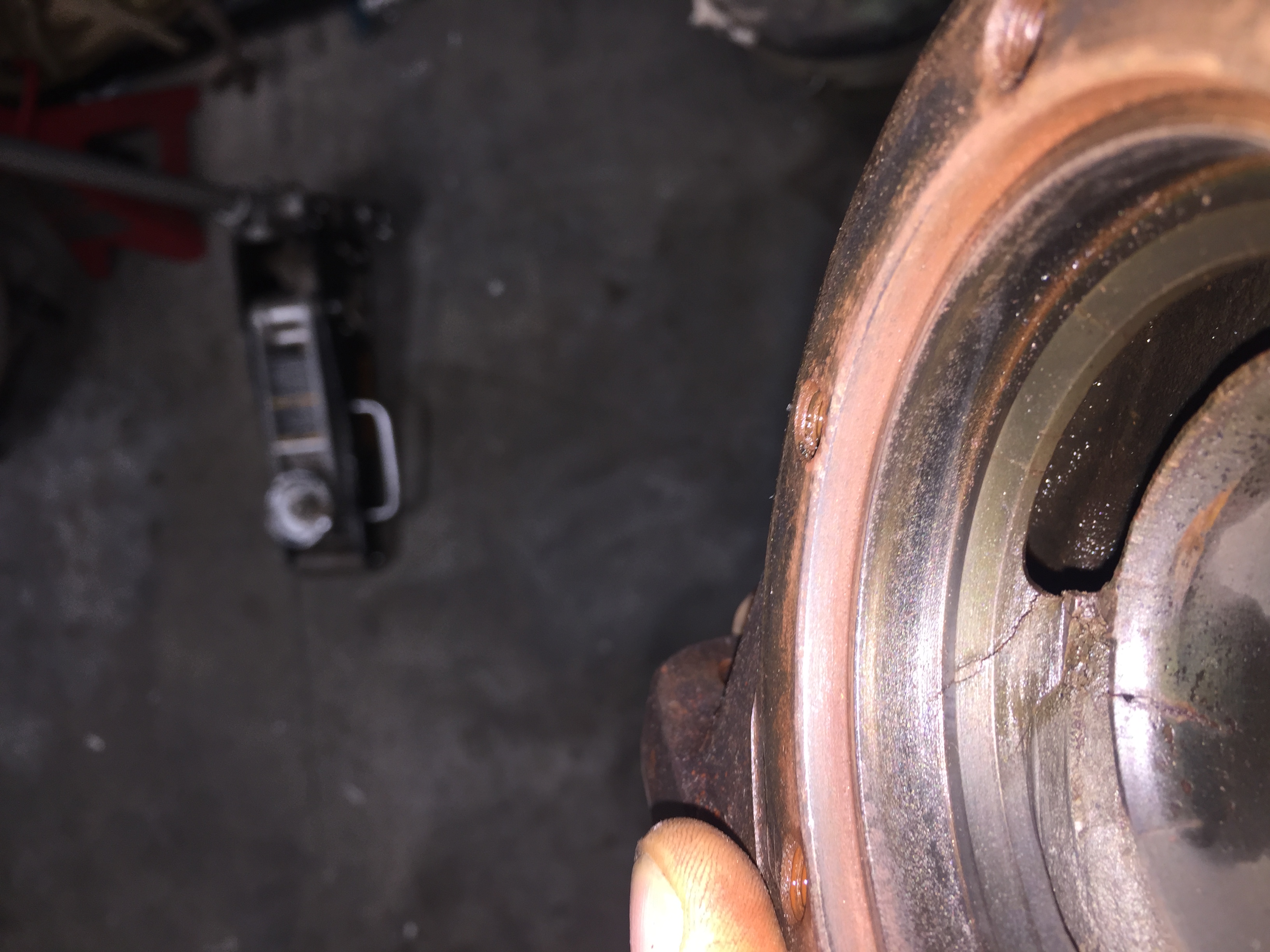

Pulled apart the GT2871R elim on my A4 to throw a new CHRA in and found these... Ive seen old K26 porsche turbos cracking like this but cant find eff all on instances of elim housing ls cracking. What do you all think? I dont really want to go full frame yet and Im not too pumped about throwing a Ko3 on there... Run it and let er buck?
- Attachments
-
- 82750EA4-7A67-4354-B21B-2F780ABCF7BD.jpeg (1.61 MiB) Viewed 25225 times
-
- 75BEEB6F-B18B-4F44-A482-783638FB9611.jpeg (2.03 MiB) Viewed 25225 times
Re: Cracked turbine housing?
Can you get it welded without too much hassle/cost? If it were me, I'd just take it into work and have one of the welders buzz that back together until I could source a cost-effective replacement. Maybe others have a good reason disagree... but that's my two cents.
Find me on Instagram @pry4sno
|| 2010 Golf Sportwagen TDI /// #farmenwagen
|| 2002 Dodge Ram 2500 24vt 4x4 #bertancummins
|| 1992 80 quattro 20v /// Eventual AAN'd Winter Sled
|| 1990 Coupe quattro /// Because Racecar
|| 2010 Golf Sportwagen TDI /// #farmenwagen
|| 2002 Dodge Ram 2500 24vt 4x4 #bertancummins
|| 1992 80 quattro 20v /// Eventual AAN'd Winter Sled
|| 1990 Coupe quattro /// Because Racecar
-
Rabbitracer43
- Posts: 51
- Joined: Tue Dec 22, 2015 10:56 am
Re: Cracked turbine housing?
welding is possible, but cast-iron does have a tendency to crack again when welded if not welded properly.
Re: Cracked turbine housing?
I thought about welding it up, then thought of probably having to do some machine work on it as well... not worth the cost in my head vs going full frame being as I already have a T25 housing for it. I just swapped over to wideband and eurodyne maestro so the plan was to go back to a ko3 for now while I save money for a manifold. Plans changed again tonight when I found one of the oil lines from a parts car has a crack in it. Saying EFF amd running this housing as is haha. Im feeling lucky.
Re: Cracked turbine housing?
id be tempted to run it
current:
-mk4 tdi wagon with some mods
-TDI b3 90q, holset turbo, be strong little connecting rods!
-the turbo tractor
past:
-11 second 90q junker
-20vt swapped 90q winter beater
-efi 20vt 4kq
-way too many other long gone urs's, 200's 4000's, b5's
-mk4 tdi wagon with some mods
-TDI b3 90q, holset turbo, be strong little connecting rods!
-the turbo tractor
past:
-11 second 90q junker
-20vt swapped 90q winter beater
-efi 20vt 4kq
-way too many other long gone urs's, 200's 4000's, b5's
Re: Cracked turbine housing?
dana wrote:id be tempted to run it
Turbos already back in the car. Just gonna send it.
-
rallyfreak202
- Posts: 45
- Joined: Wed Mar 06, 2013 9:51 am
Re: Cracked turbine housing?
Hey guys, I'm very familiar with seeing cracks in these areas (tongue and bearing housing seat). The crack that runs from volute tongue up to BH bore is probably due to poor metal composition. The
crack I'd worry about is on volute tongue. Usually this is due to the material stress relieving and once it does that, no problems. However, I see lots of cracking around a small, uncaptured
region (tongue). This area gets beat up and I'd worry about that coming off based on the quality of the material seen. Also, seems like there's a crack on the contour. In summary,
run the piss out of it and pull the core off routinely to inspect it. Preying for no FOD for you.
crack I'd worry about is on volute tongue. Usually this is due to the material stress relieving and once it does that, no problems. However, I see lots of cracking around a small, uncaptured
region (tongue). This area gets beat up and I'd worry about that coming off based on the quality of the material seen. Also, seems like there's a crack on the contour. In summary,
run the piss out of it and pull the core off routinely to inspect it. Preying for no FOD for you.
