Tim's '86 BLAZE 4kq EPIC PROGESS!!!!

[my2000apb]

more

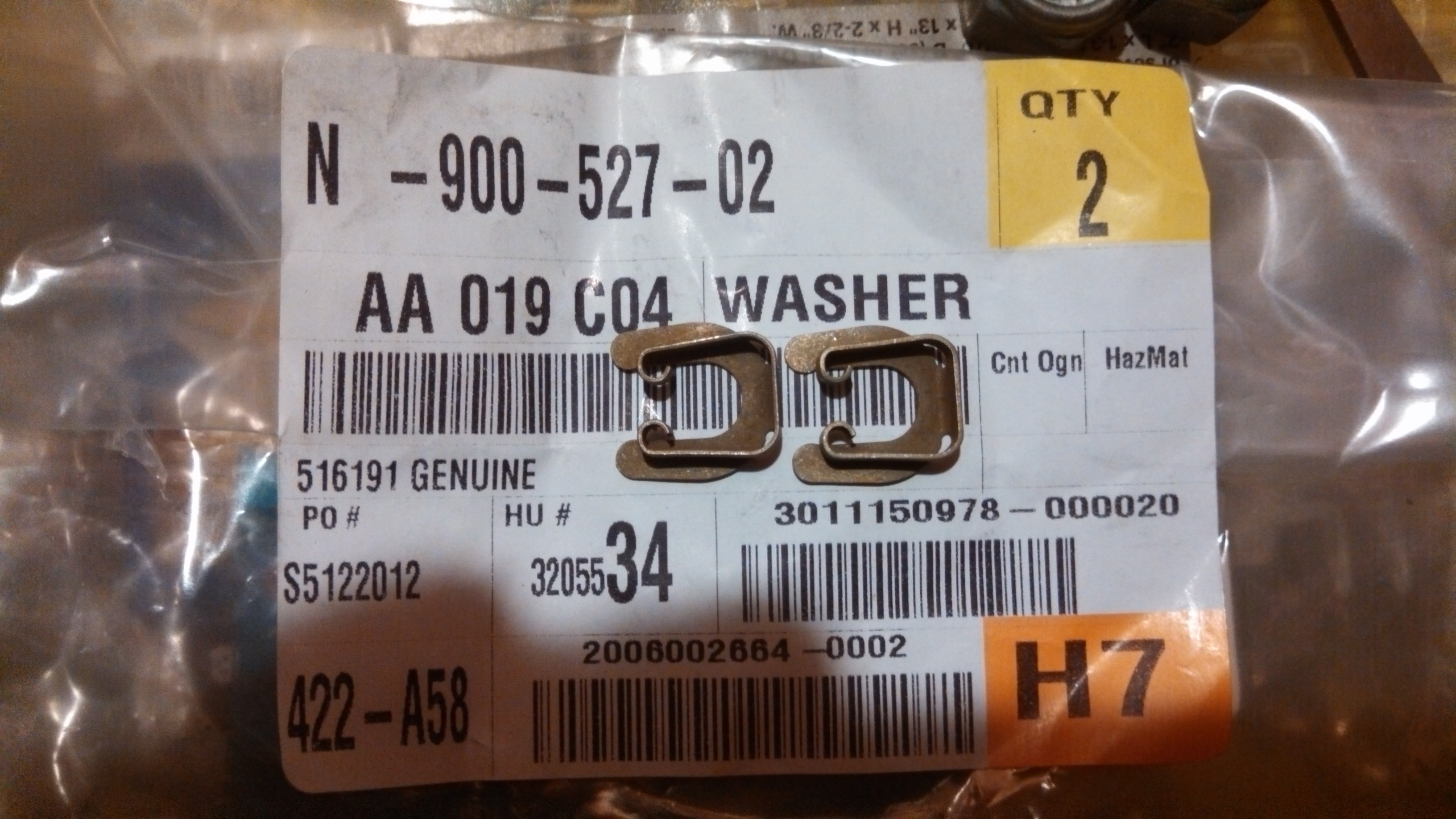

ebrake cable clips.jpg (977.54 KiB) Viewed 28727 times

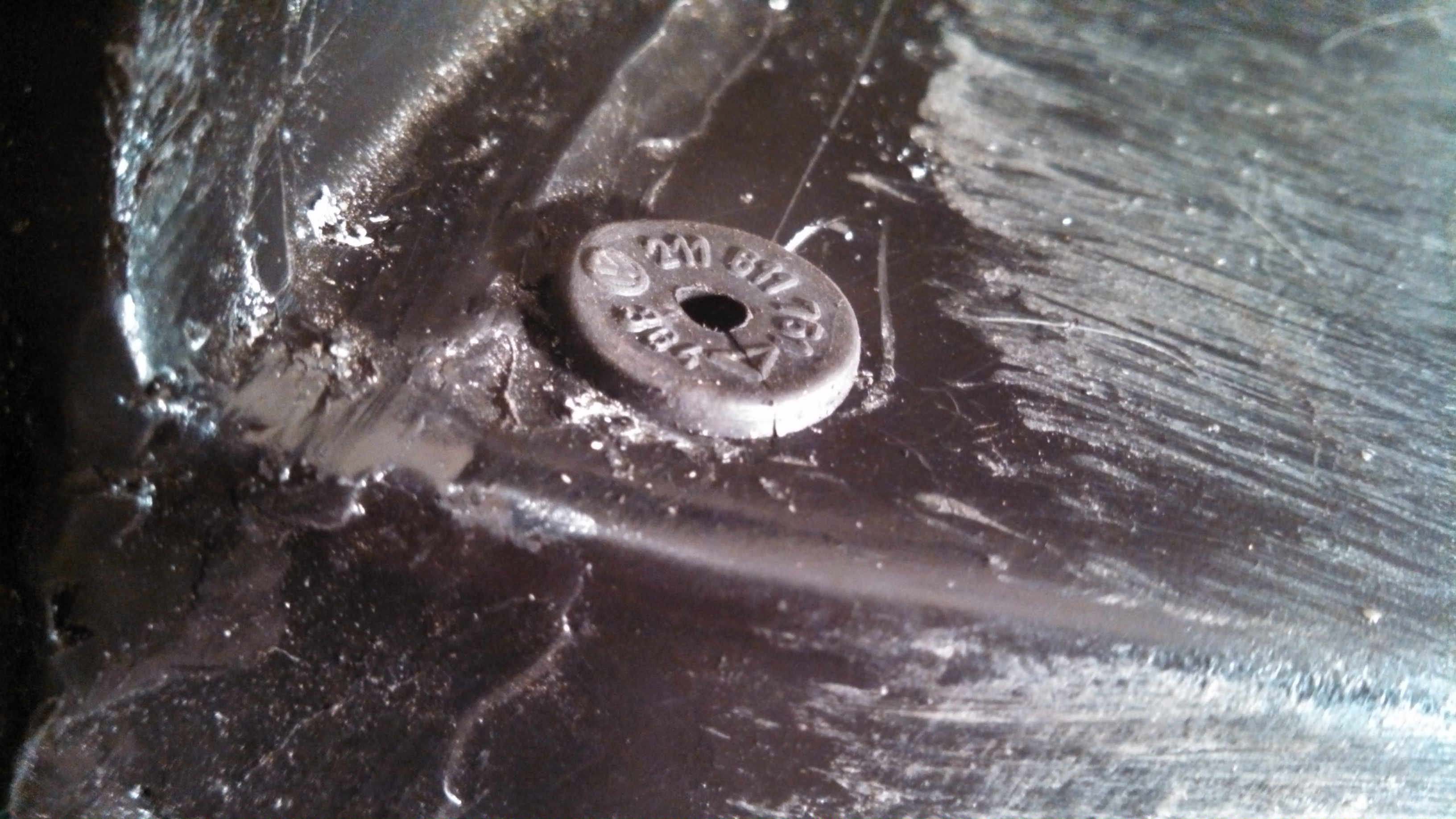

brake line grommets.jpg (1.54 MiB) Viewed 28727 times

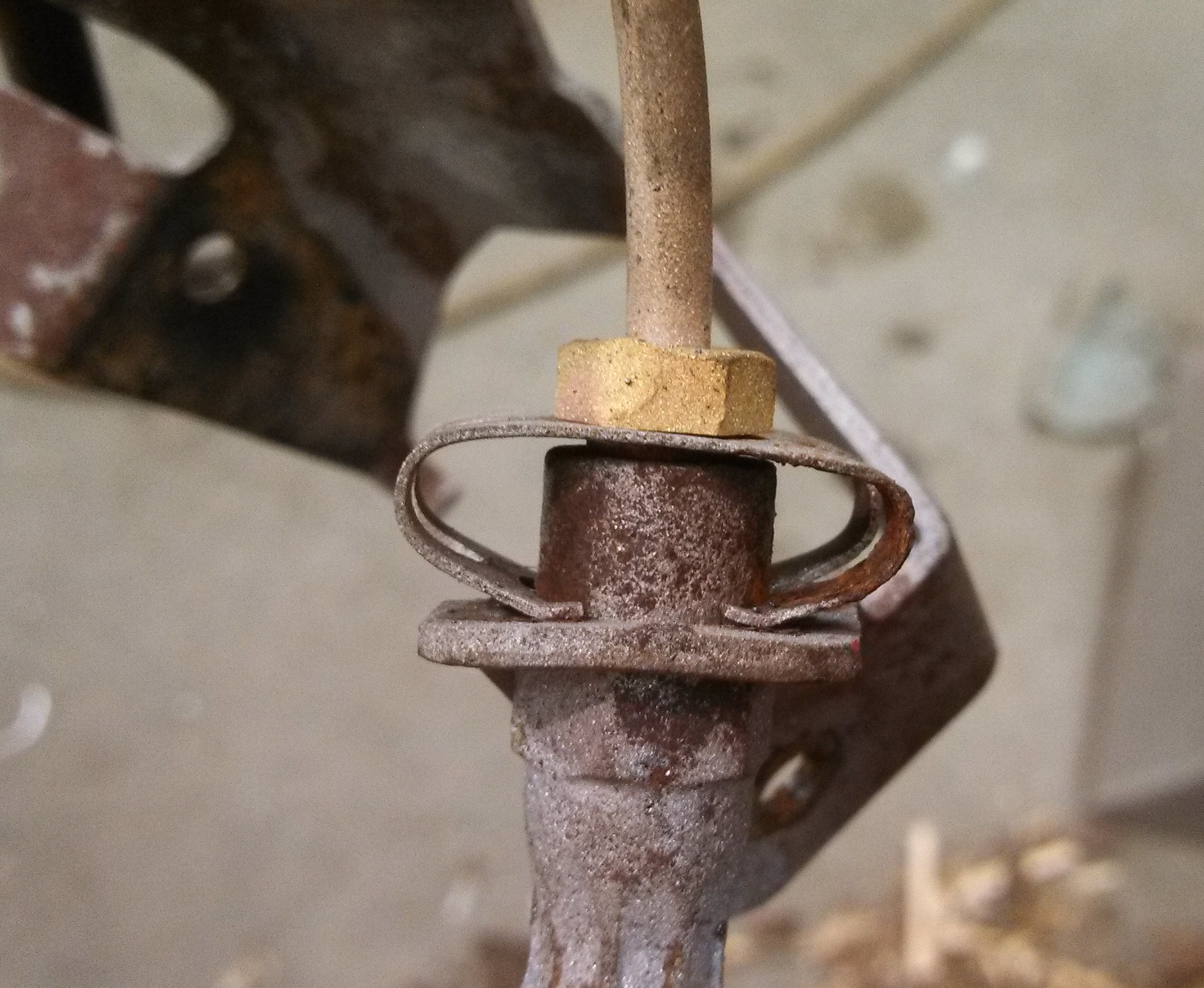

brake line correct.jpg (938.36 KiB) Viewed 28727 times

[my2000apb]

MORE!

Nothing too interesting here other than im running a ’91 200 20vtq brake master cylinder. The port arrangement is a bit different than the 4kq, but as I was making all new lines, it was a non-issue.
Pics!

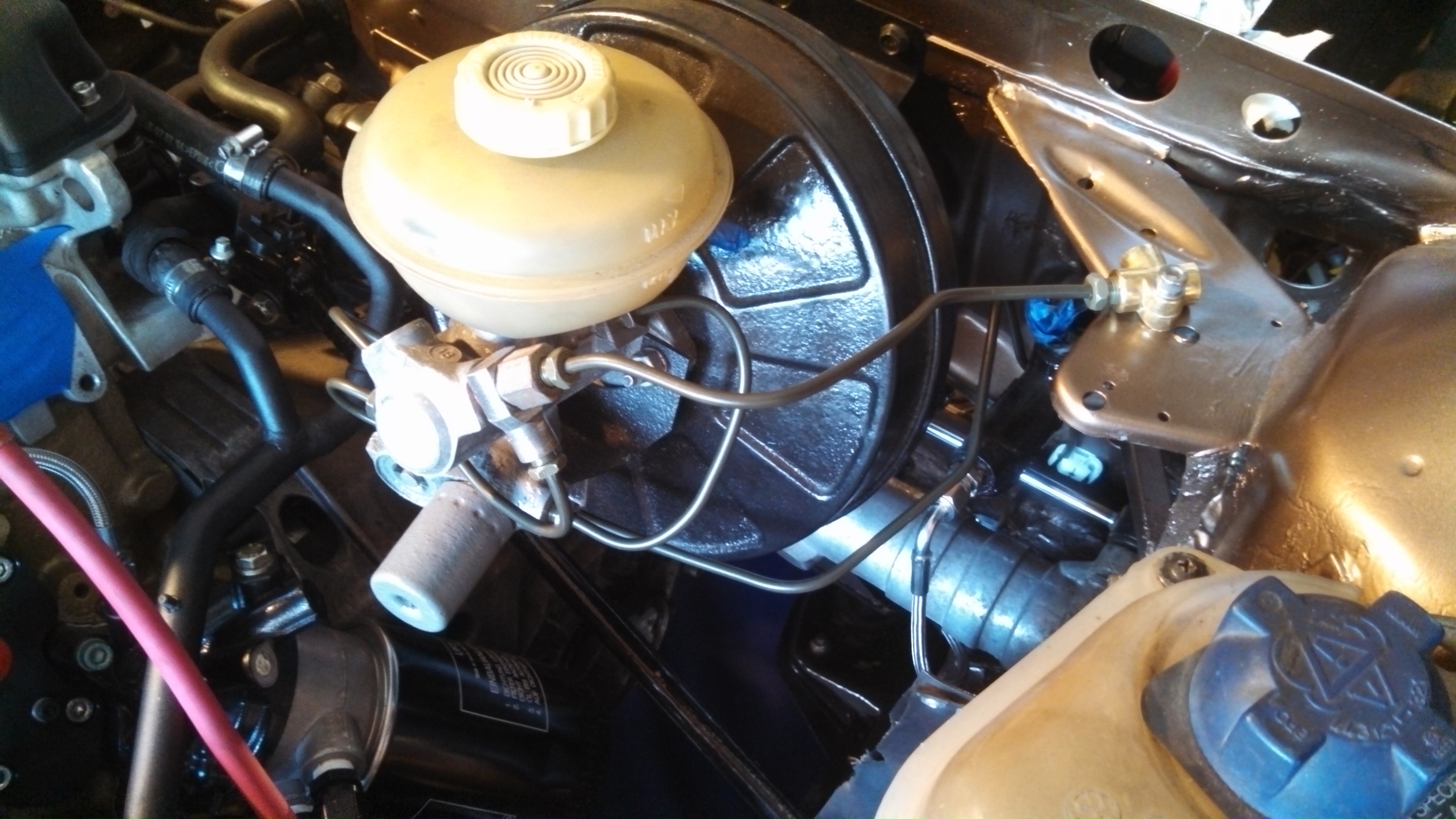

plumbing new brake lines.jpg (1.37 MiB) Viewed 28727 times

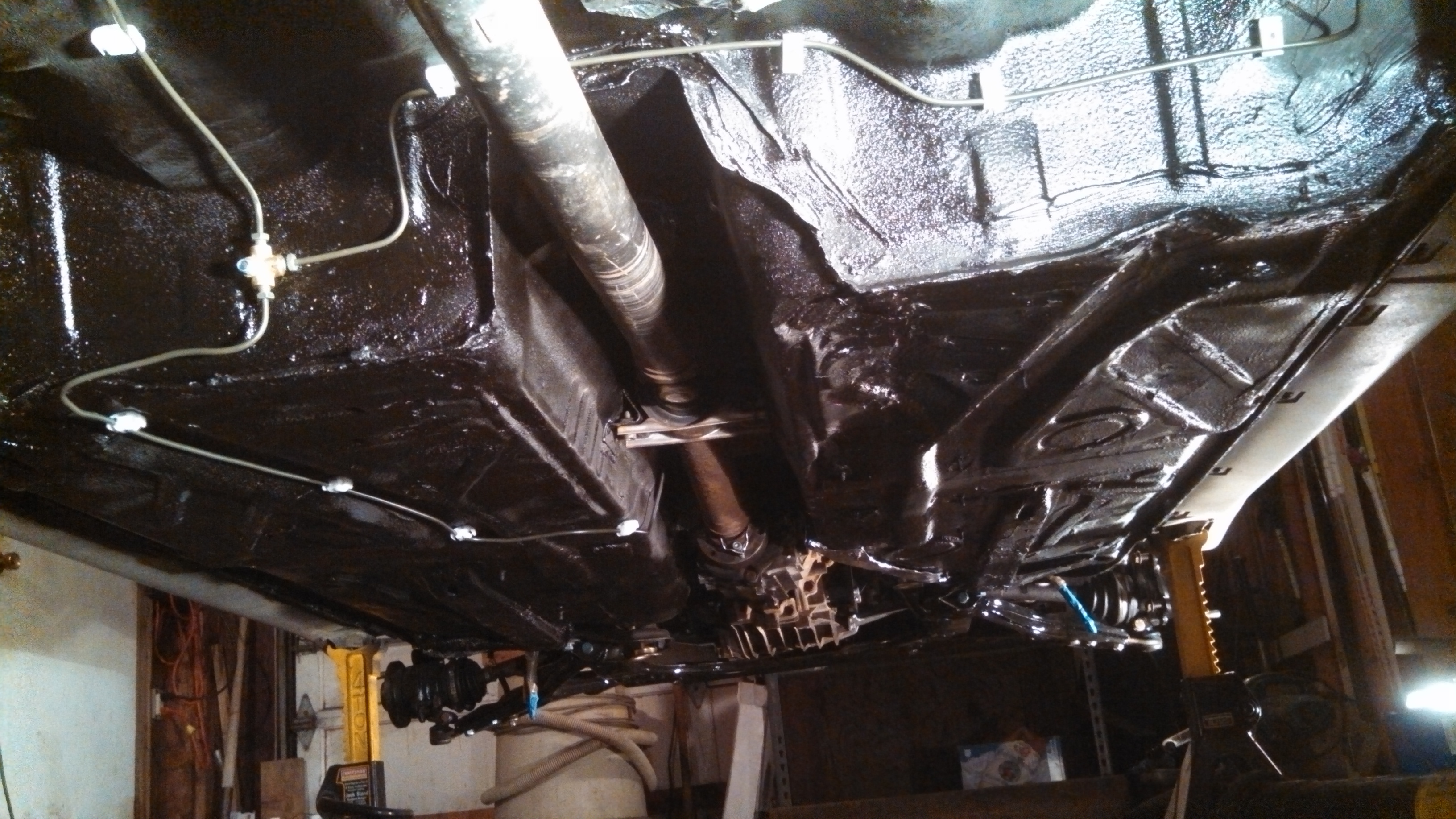

handbrake hardline to new T and ind. rears.jpg (1.75 MiB) Viewed 28727 times

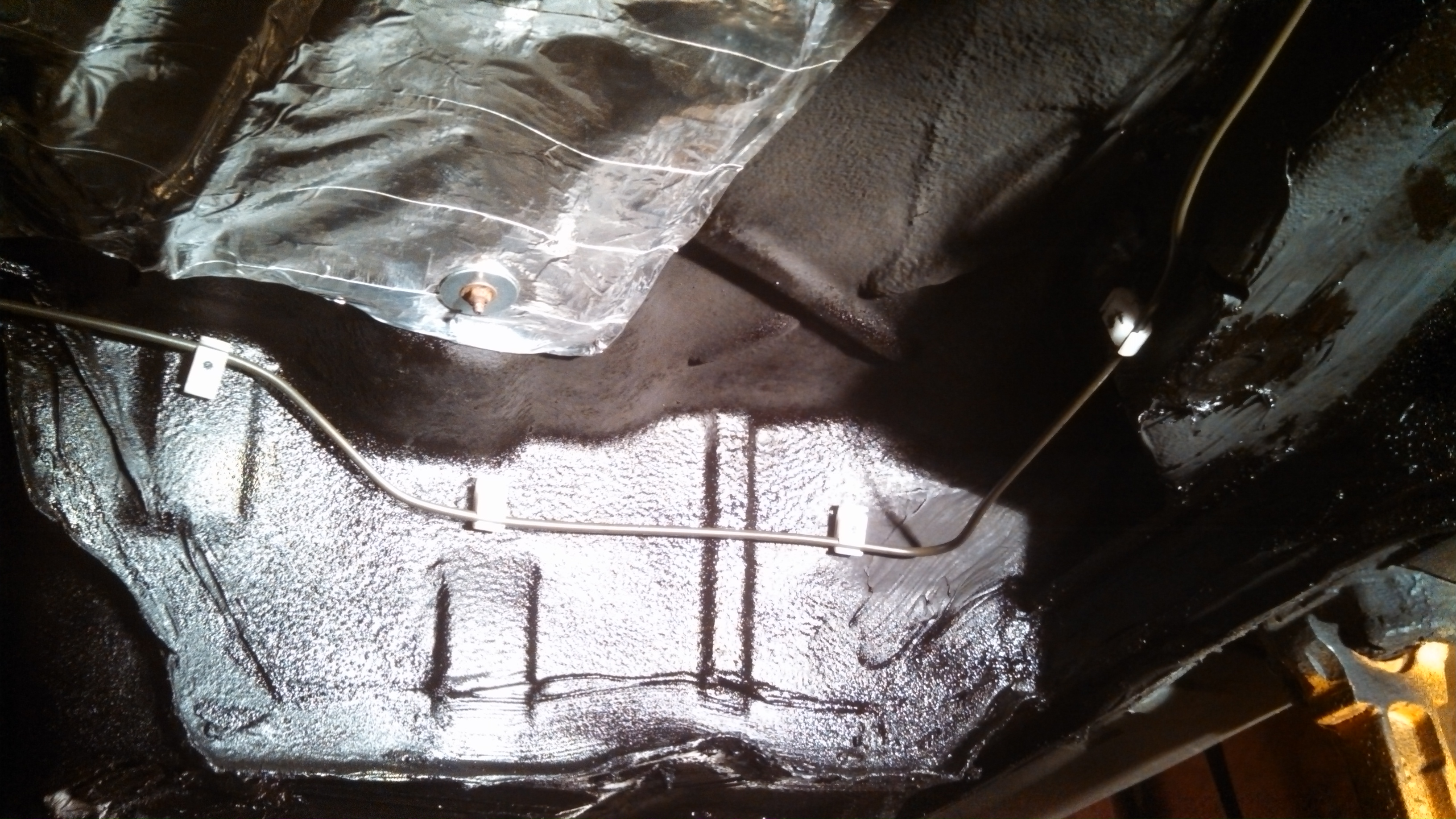

new rear pass. hardline.jpg (1.7 MiB) Viewed 28727 times

Note: the hardline coming down and out of the trans tunnel. That’s from the hydraulic handbrake mounted near the shifter!!!

All the rear lines are done, flared, attached and with new clips and softlines! Wooot!

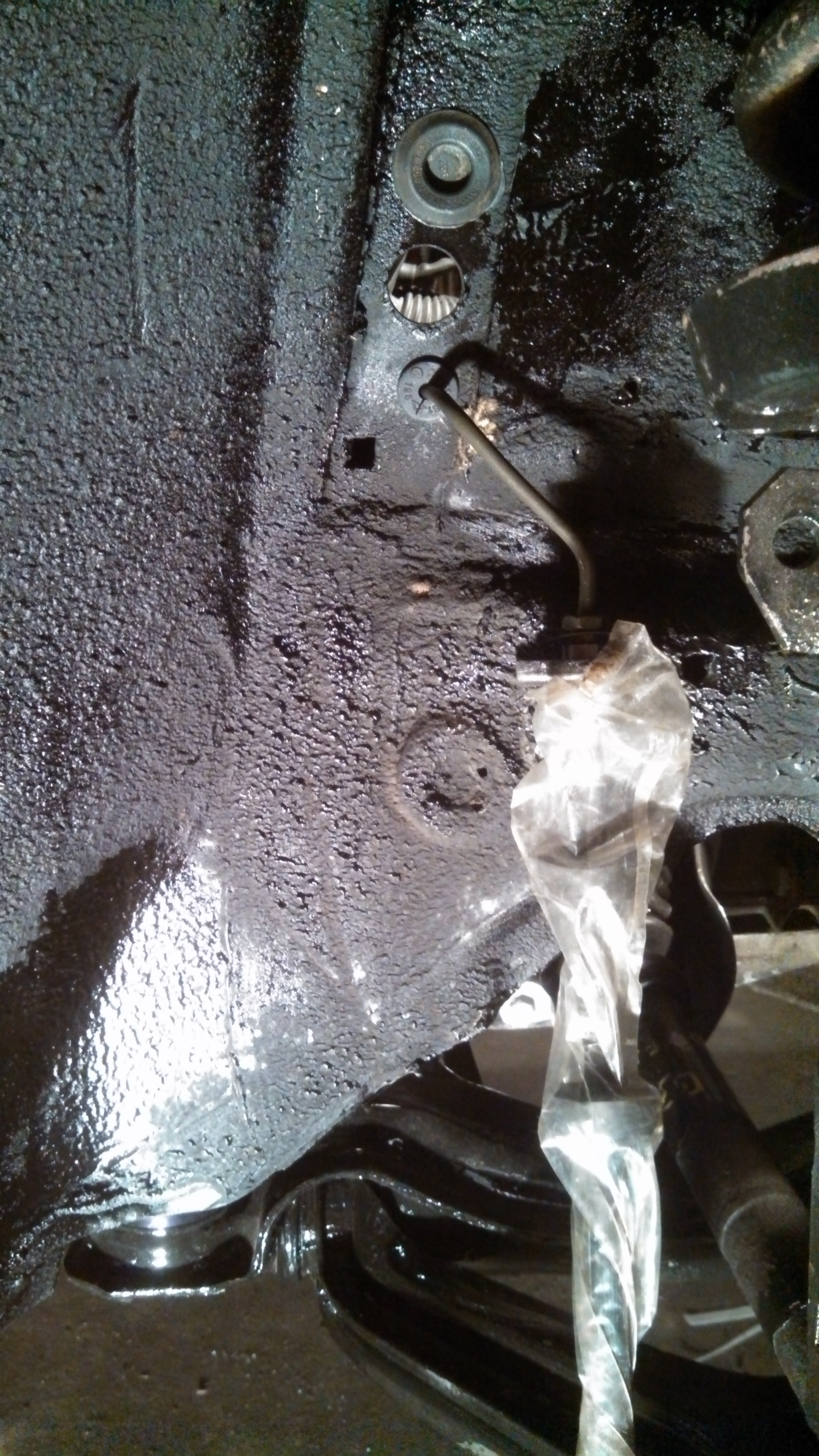

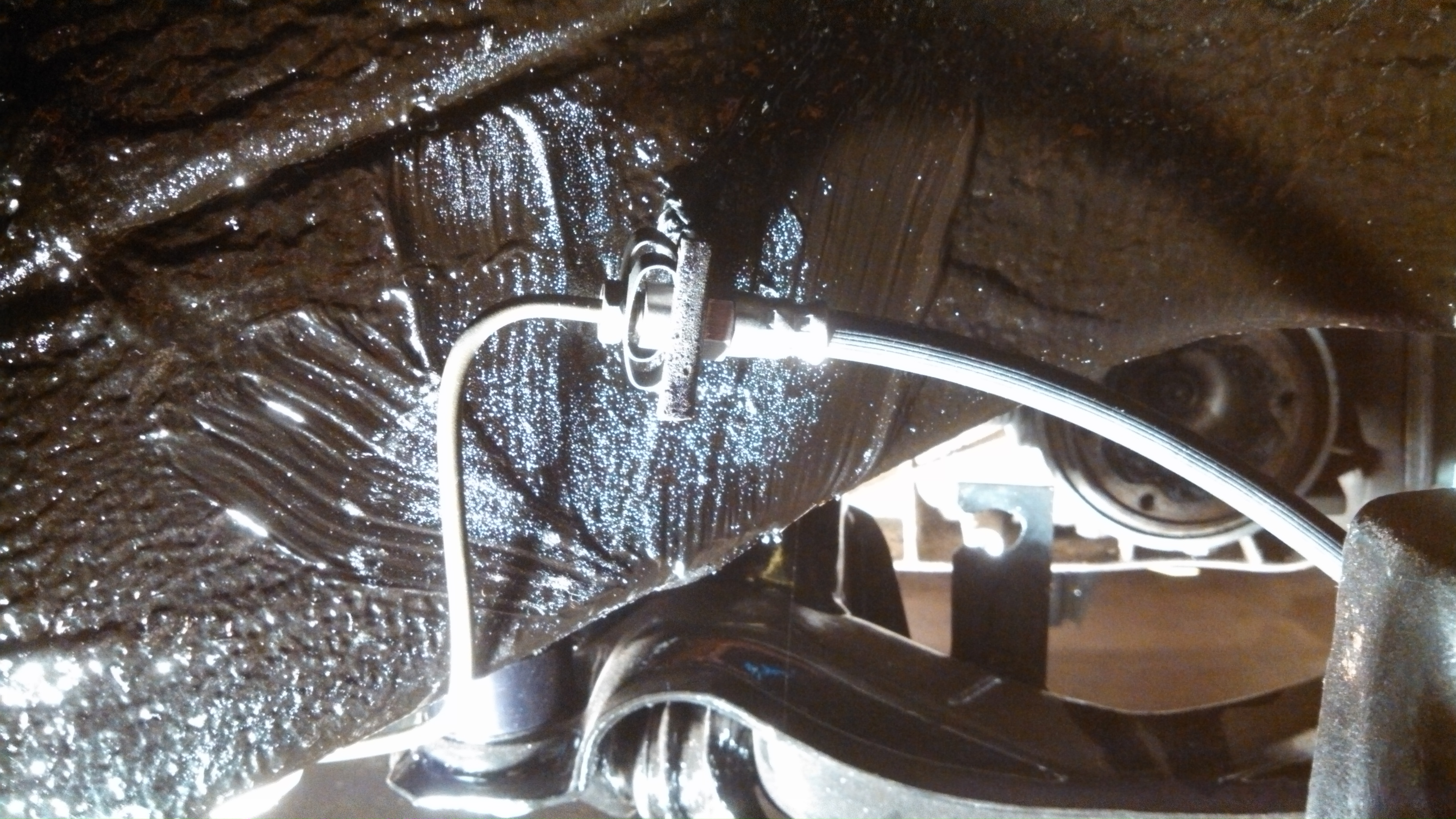

all new hard and softlines with clips.jpg (1.92 MiB) Viewed 28727 times

all new hard and softlines with clips2.jpg (1.8 MiB) Viewed 28727 times

[my2000apb]

MORE!!
Here is the hydraulic Comp-Brake vertical handbrake inplace with the b5 s4 shifter box. It’s nice and close to the steering wheel and shifter.

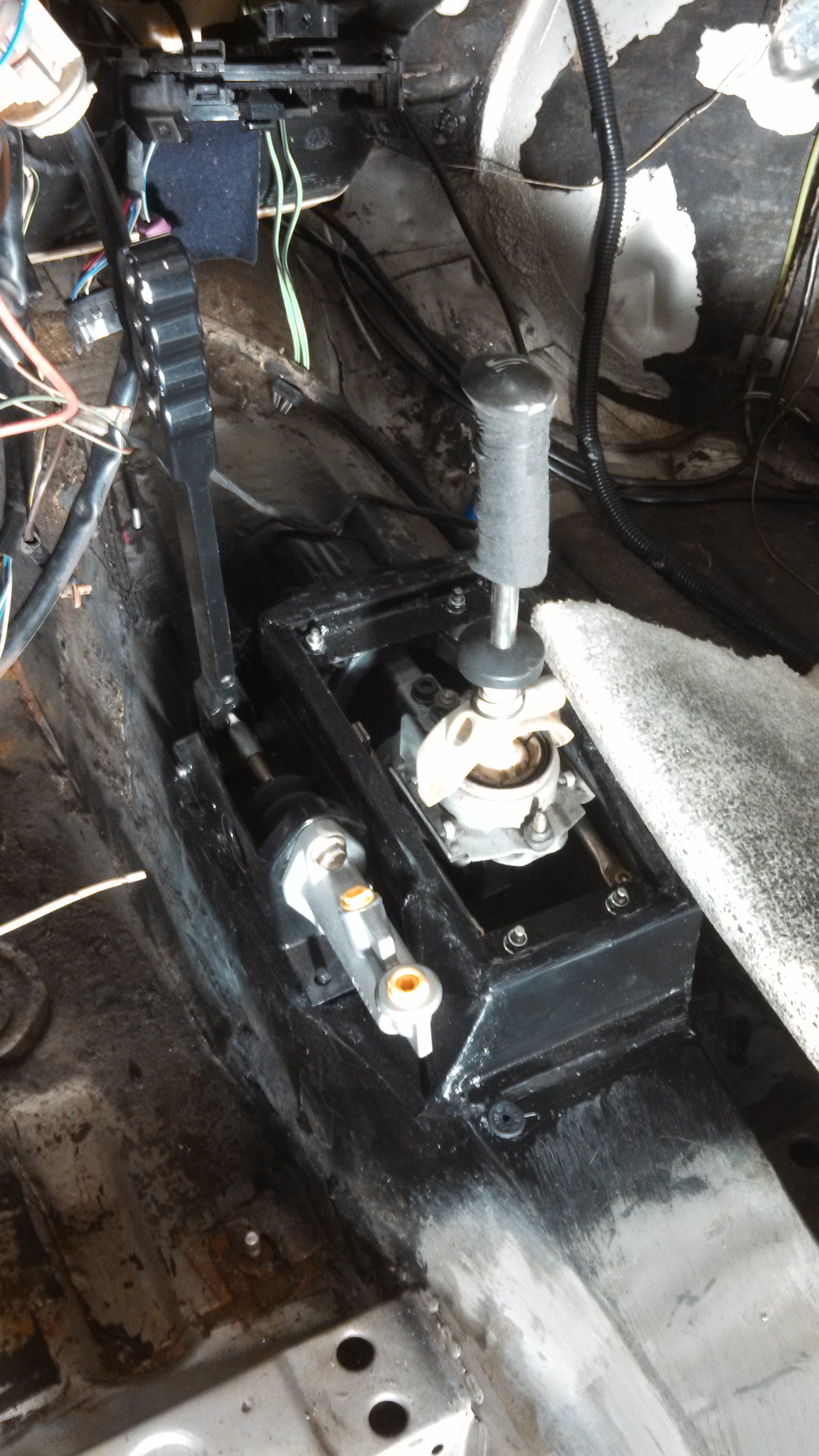

handbrake and new shifter.jpg (1.63 MiB) Viewed 28727 times

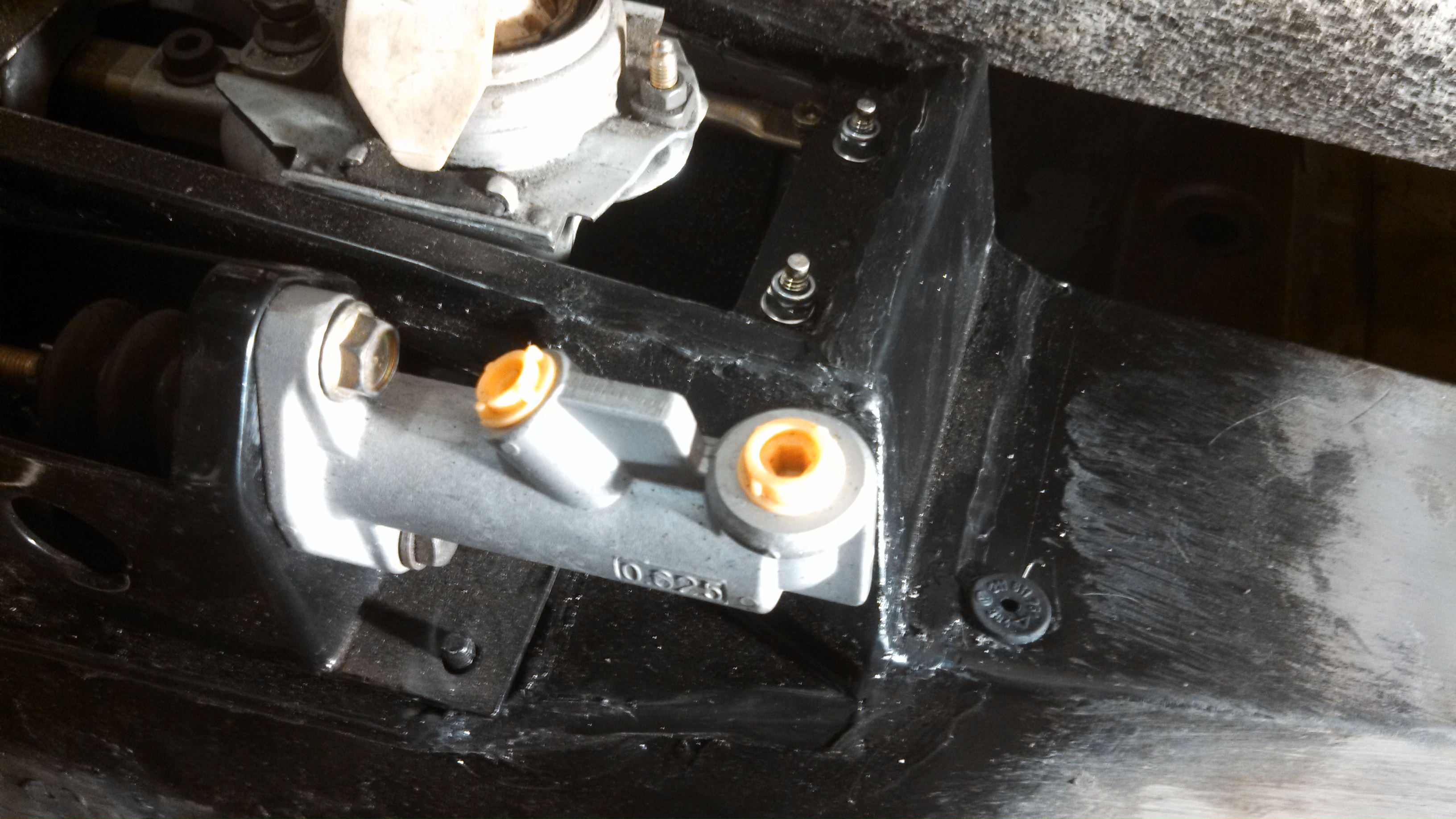

handbrake mounted next to new shifter.jpg (1.49 MiB) Viewed 28727 times

Hardlines coming through firewall and rearward on trans. tunnel

handbrake hardline from MC.jpg (1.23 MiB) Viewed 28727 times

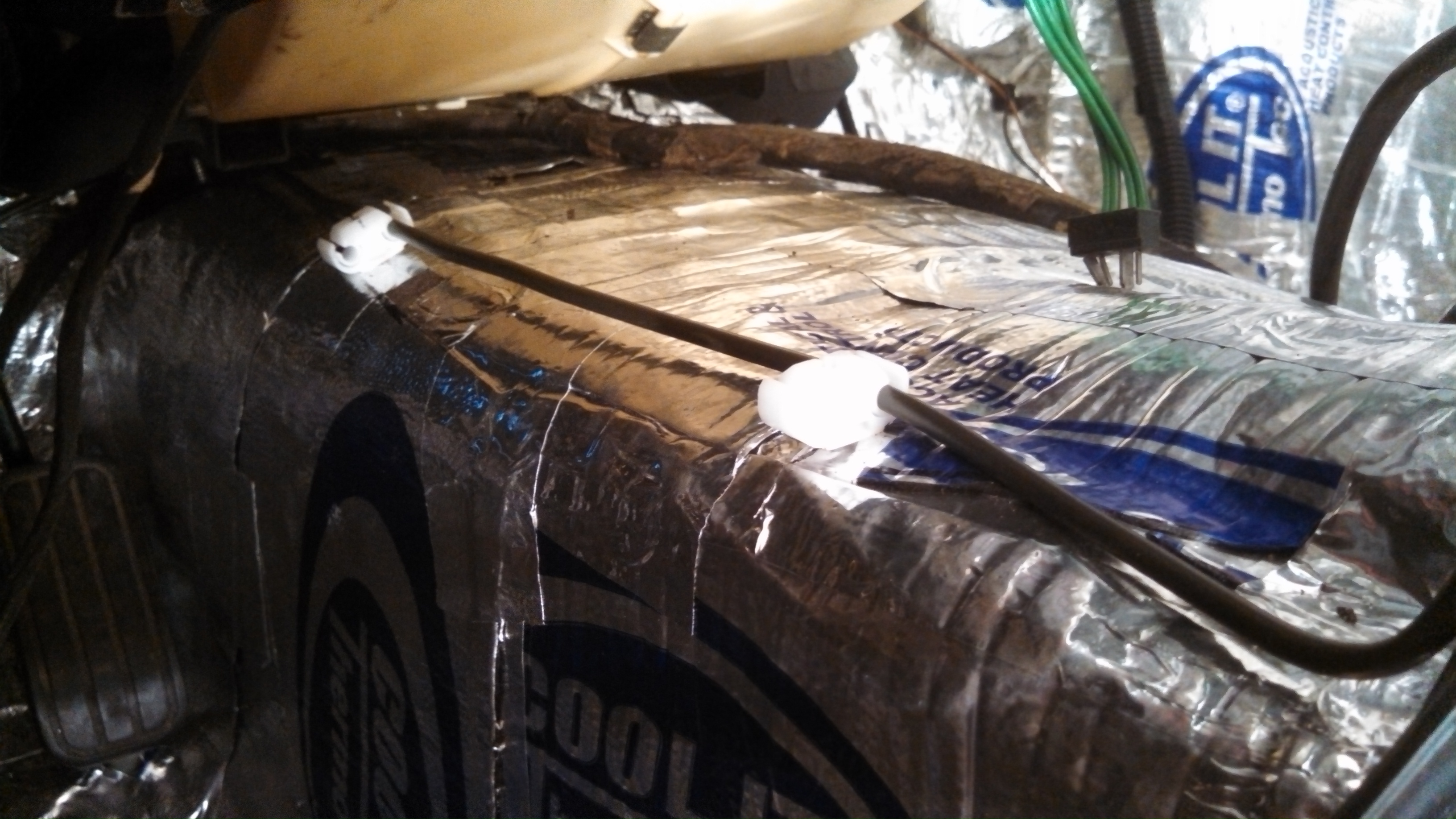

handbrake hardline from MC along tunnel.jpg (1.31 MiB) Viewed 28727 times

[my2000apb]

MORE!!
Fenders got their major dose of bondo smoothing, I just need to do one more skim on a few spots and they will be ready for paint!

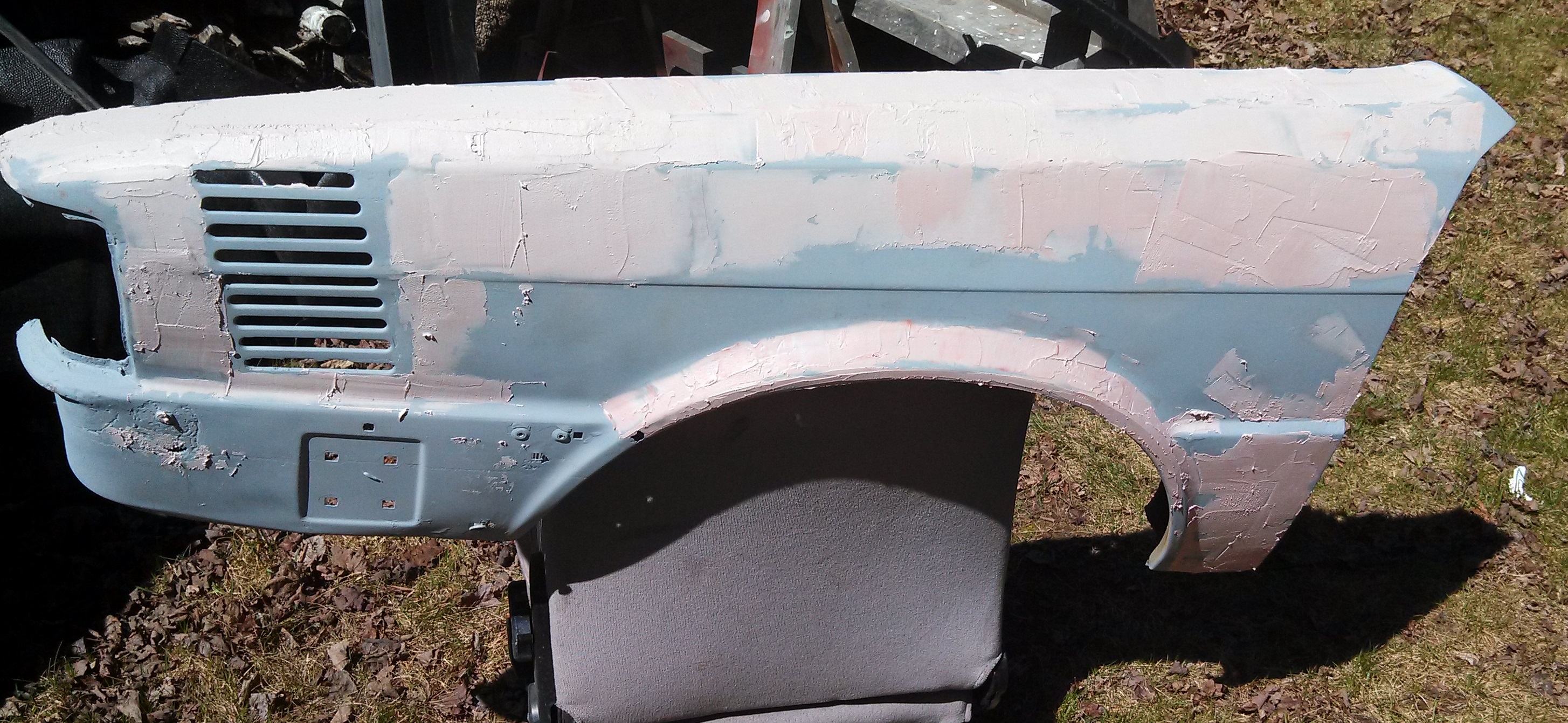

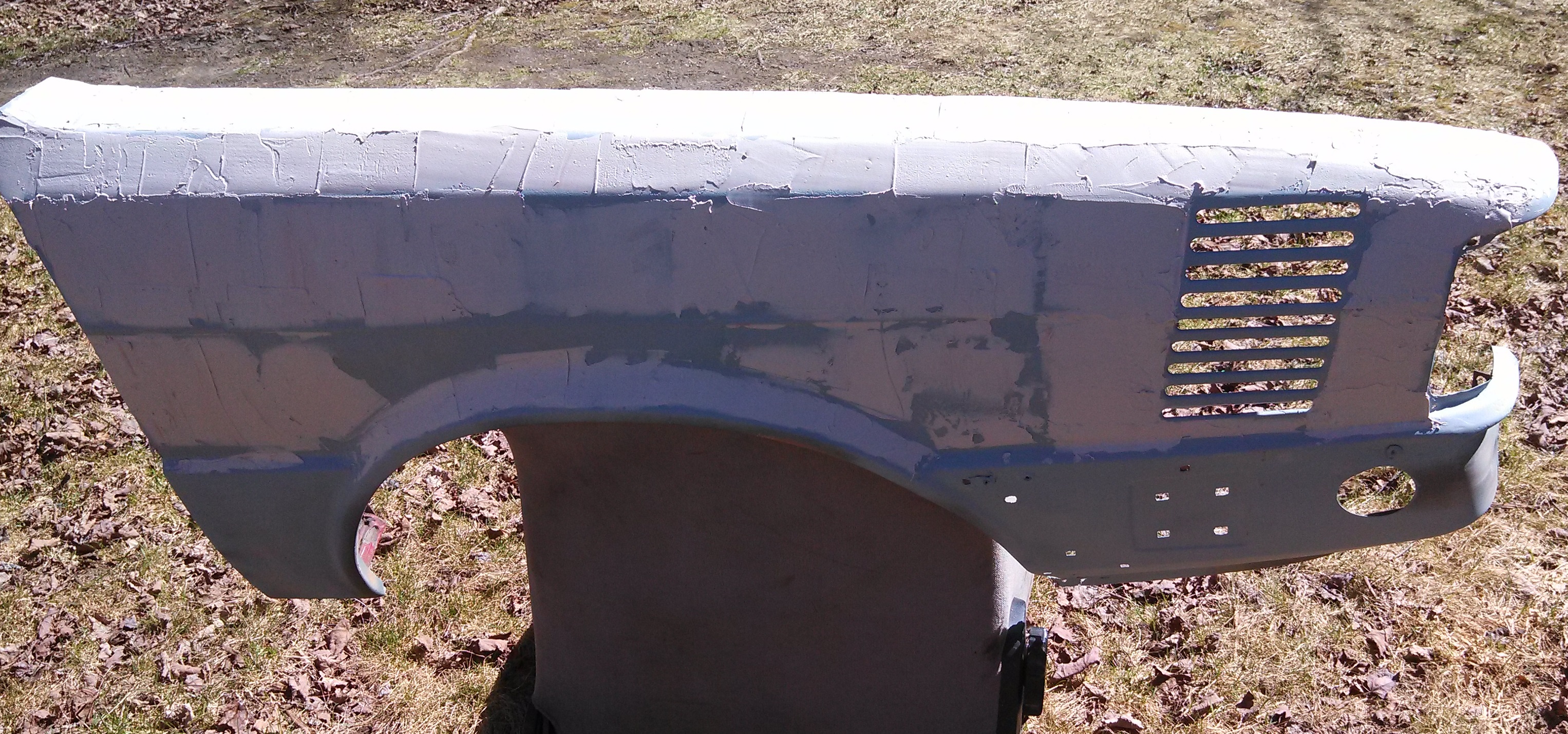

more bondoage.jpg (1.72 MiB) Viewed 28726 times

more bondoage 2.jpg (1.35 MiB) Viewed 28726 times

[my2000apb]

more

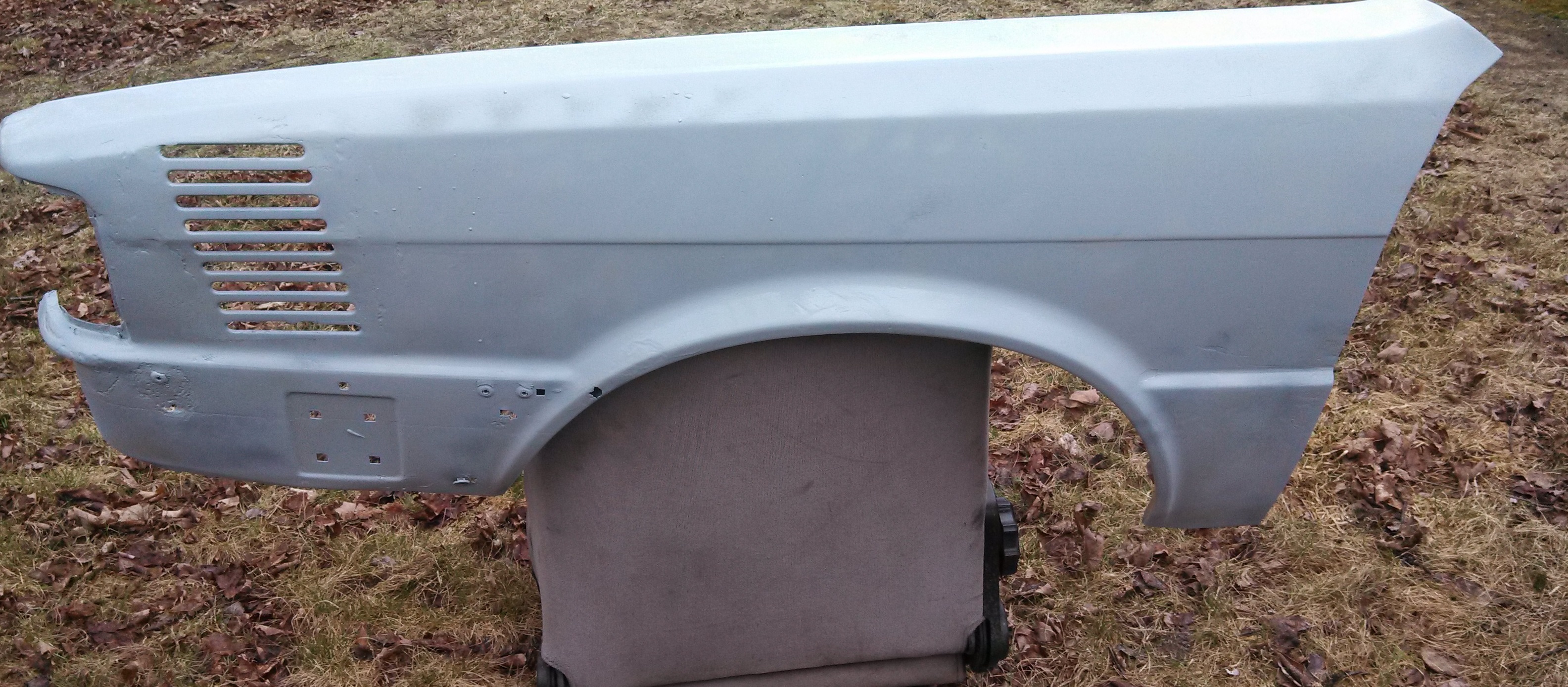

drv fender vent.jpg (1.42 MiB) Viewed 28726 times

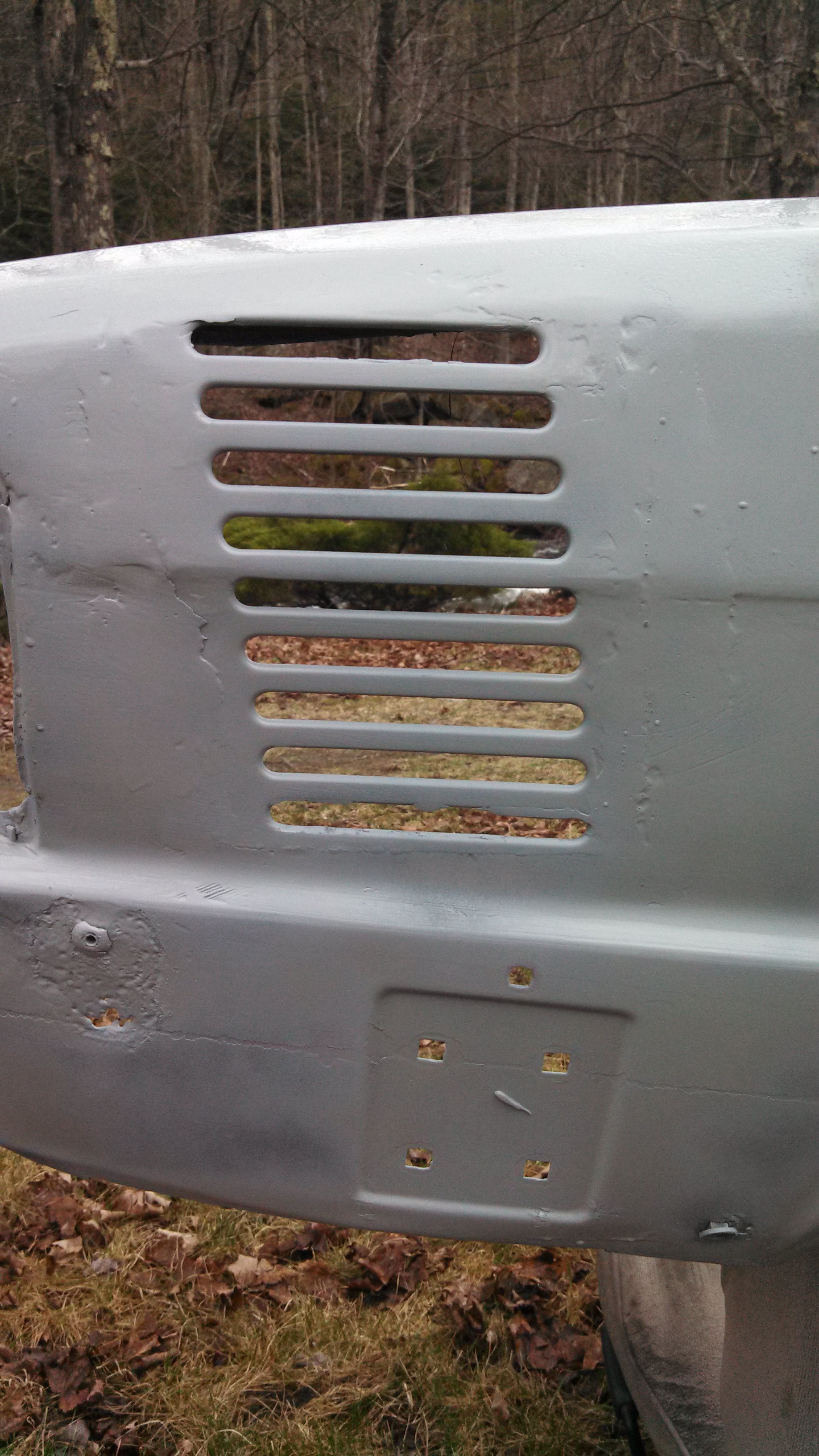

drv fender vent detail.jpg (1.87 MiB) Viewed 28726 times

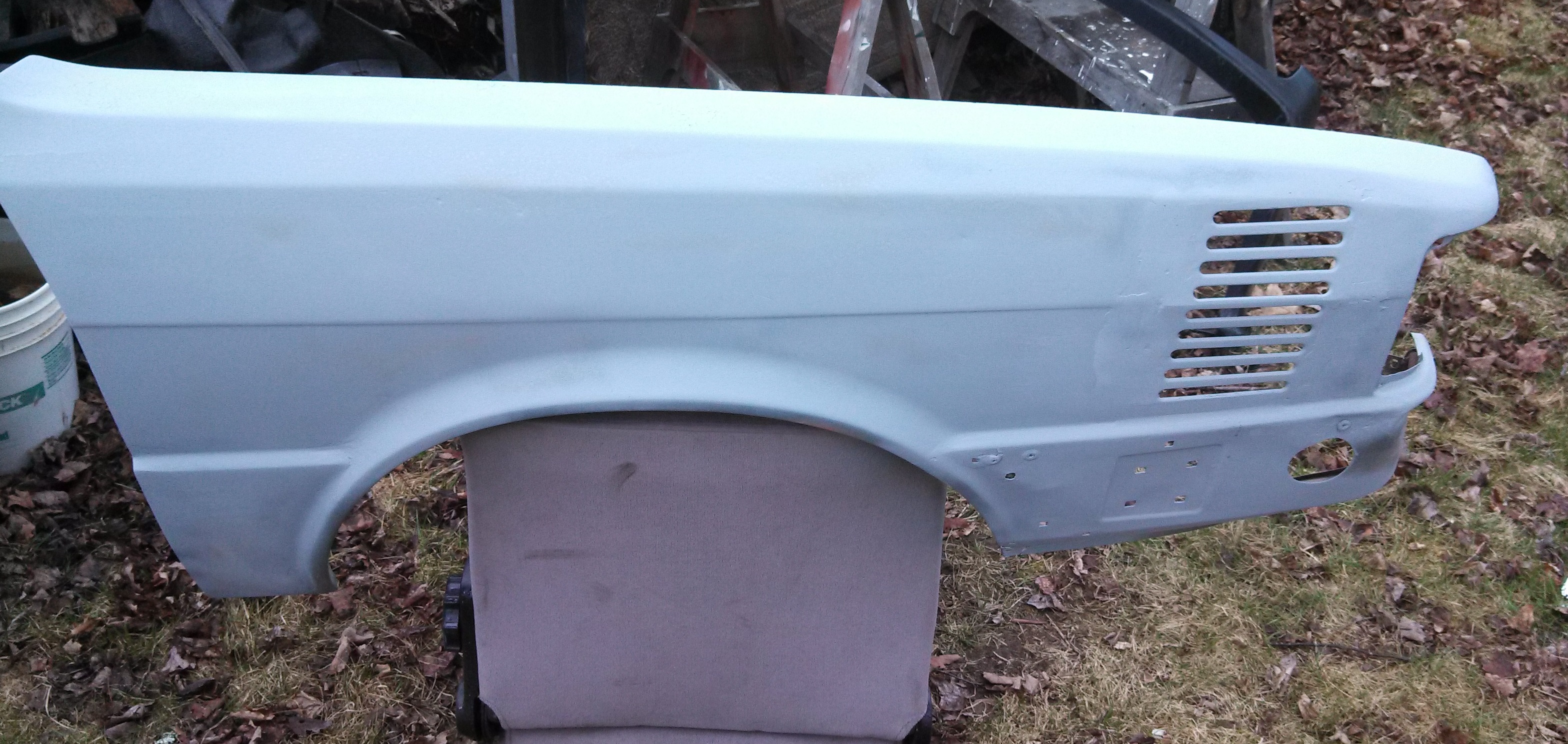

pass fender vent.jpg (1.4 MiB) Viewed 28726 times

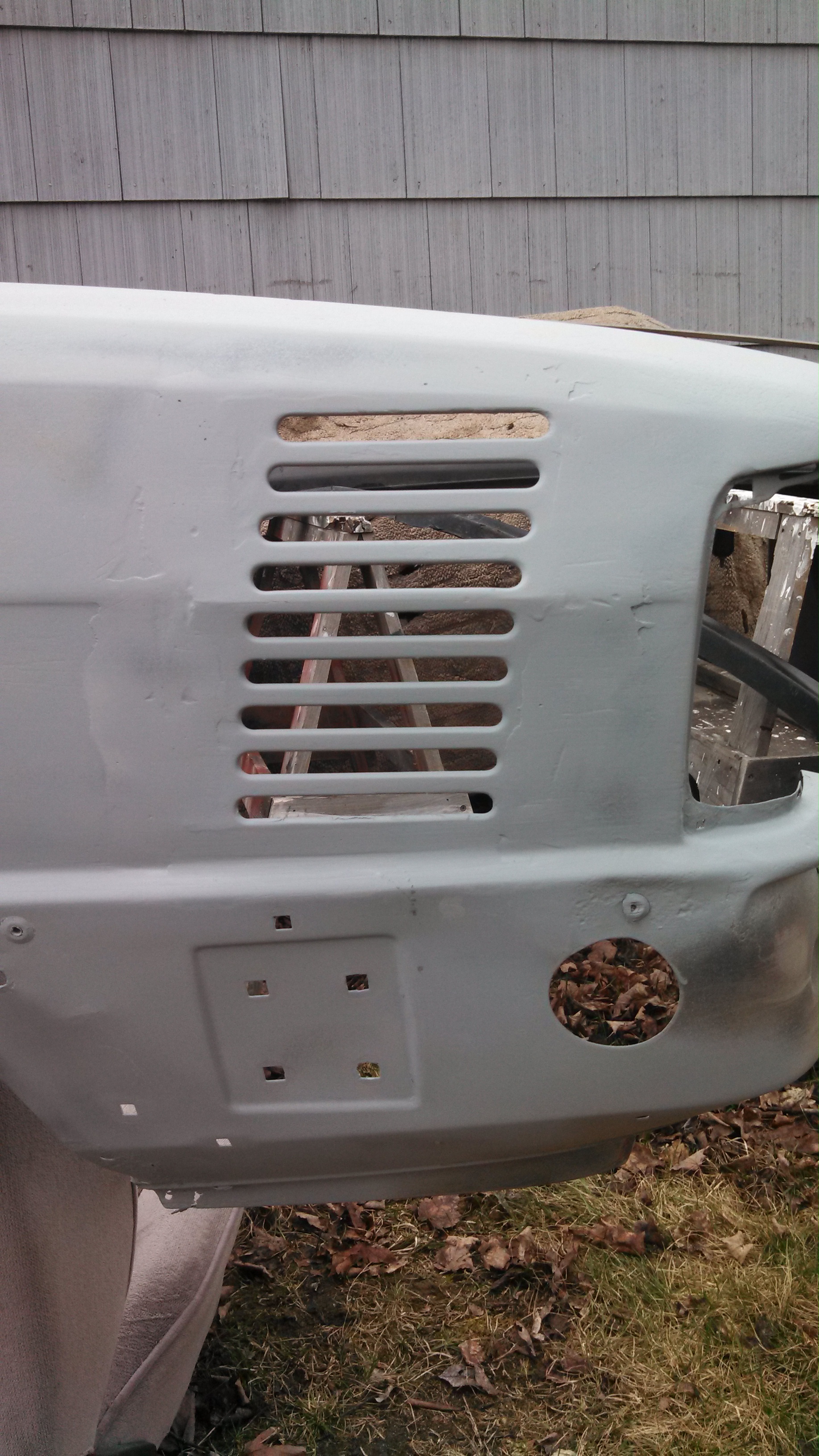

pass fender vent detail.jpg (1.7 MiB) Viewed 28726 times

[my2000apb]

UPDATE!!!
Getting down to the wire! Haha pun

There’s not too much left, wiring, driveshaft install, rework the undertray a little bit, etc
Wiring to go through, ugh

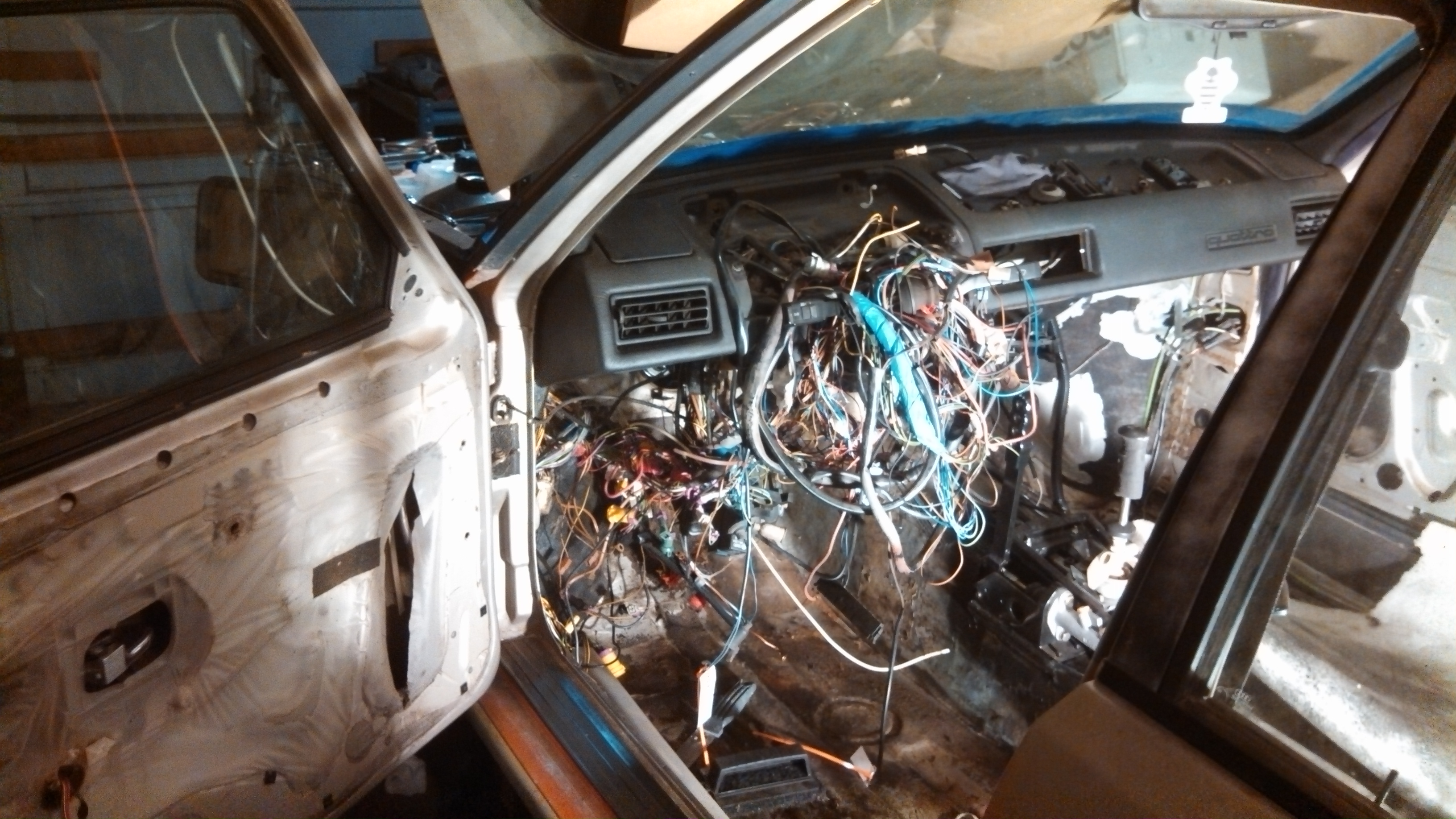

wiring to sort through.jpg (1.61 MiB) Viewed 28725 times

Time to take a break from mechanicals and get it to paint!!!

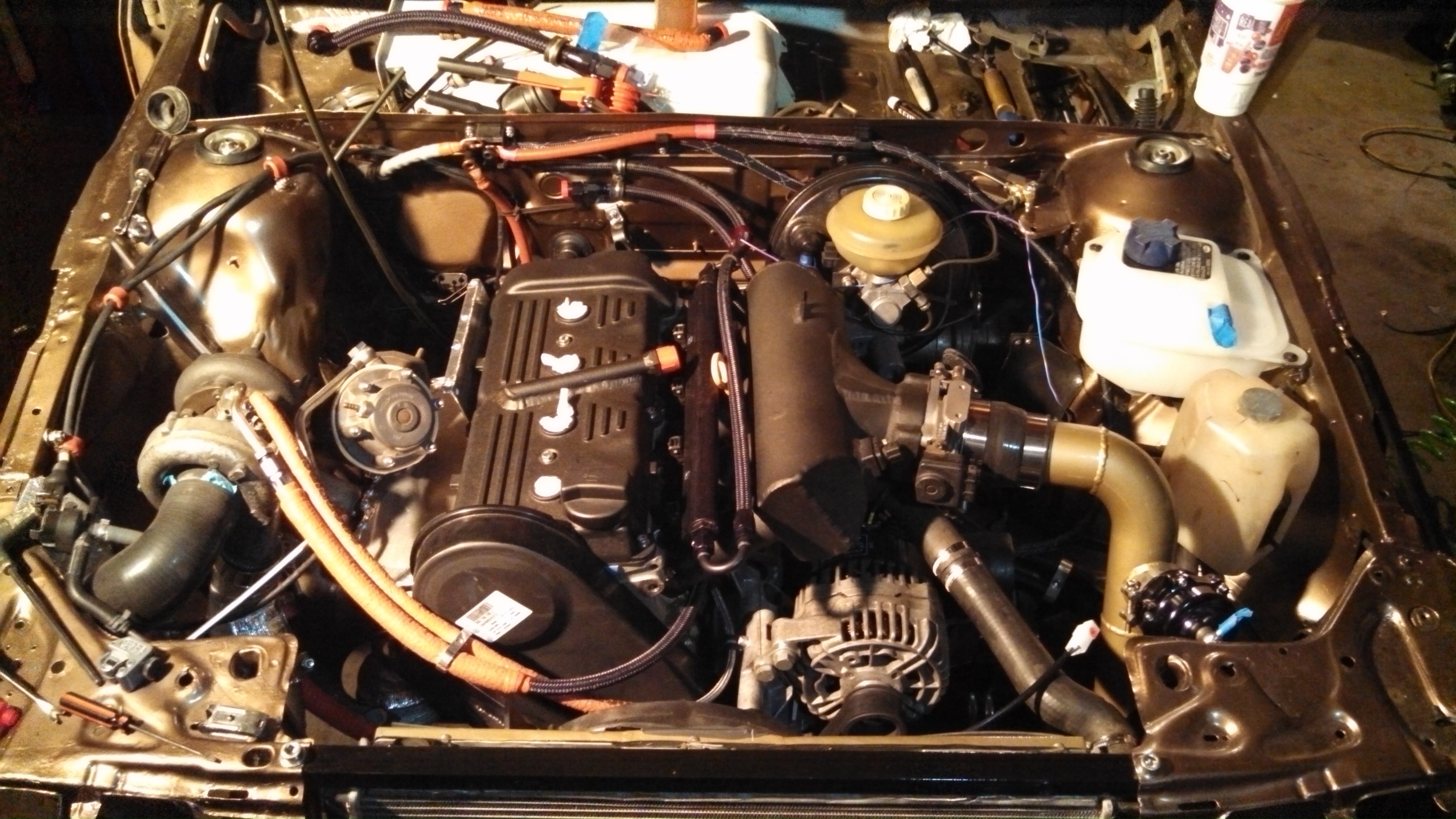

Here’s a pic of the engine bay just prior to wrapping it all up

most recent bay shot.jpg (1.73 MiB) Viewed 28725 times

All taped off awaiting paint.

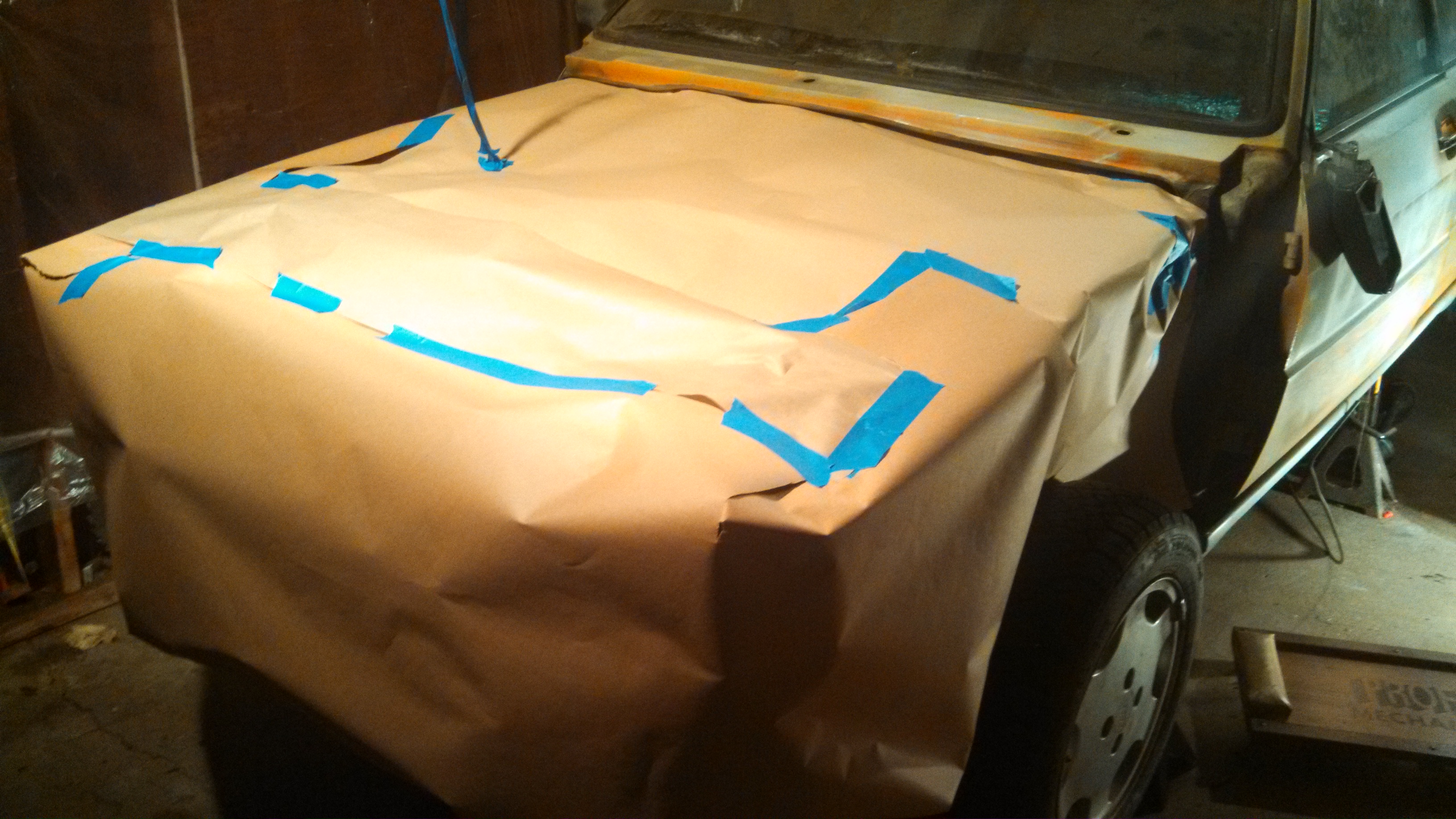

engine bay all sealed up for paint protection.jpg (1.81 MiB) Viewed 28725 times

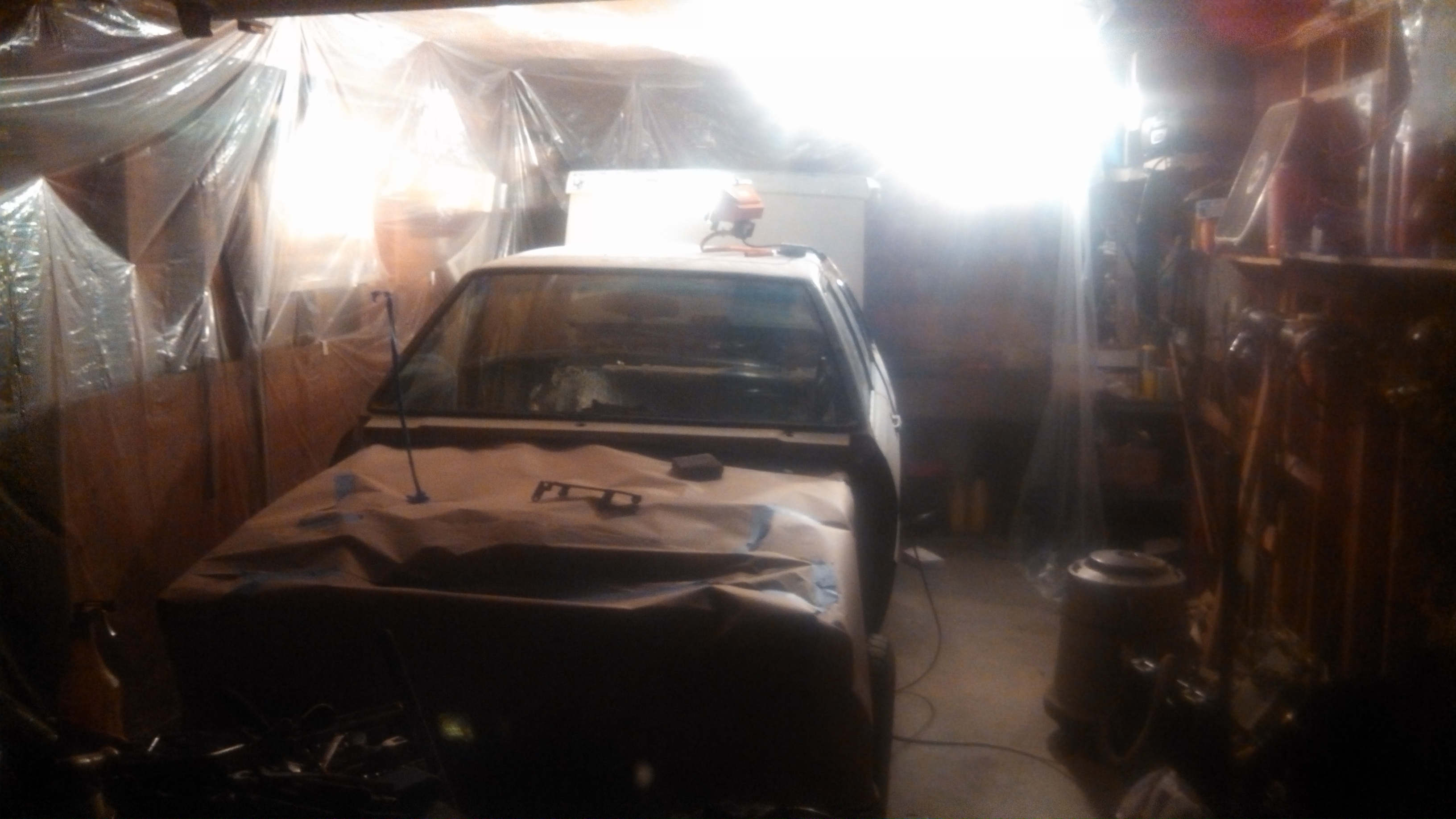

paint prep.jpg (1.15 MiB) Viewed 28725 times

Garage prepped for sanding, sanding, sanding then PAINT!!!!

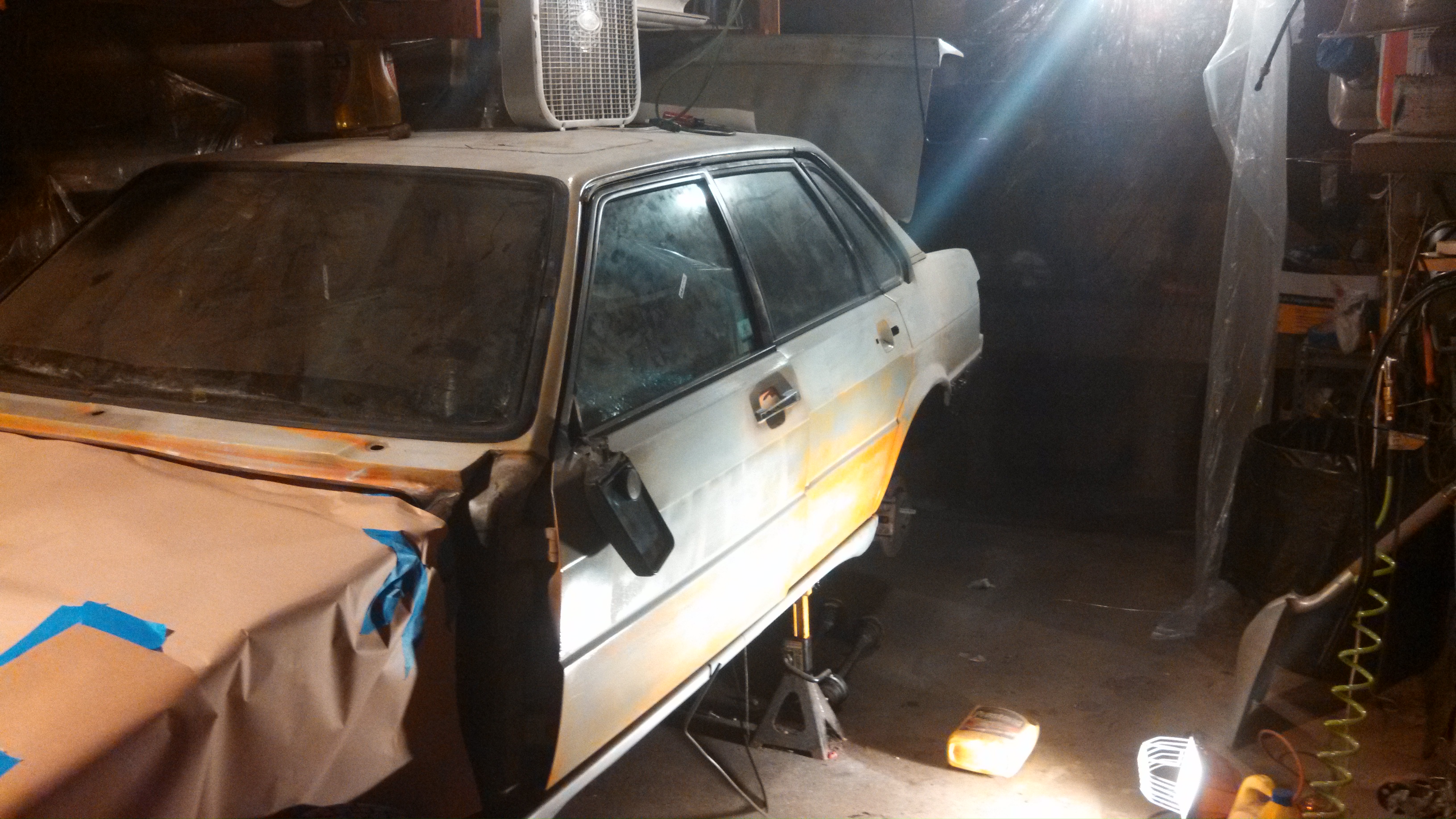

needs paint.jpg (1.85 MiB) Viewed 28725 times

That’s all and caught up for now! Time to get back to work!!!

[my2000apb]

for sale ad coming soon! to a swapmeet forum near you!!!

[AngryTaco]

ermahgawd those wires

[my2000apb]

ermahgawd those wires

whatchou talkin bout!!!

[AngryTaco]

I thought the wiring on my 4k 20vt was bad. That right there is nuts

[my2000apb]

I thought the wiring on my 4k 20vt was bad. That right there is nuts

youre crazy

a vems 4 cyl intergration ito a 4kq isn't bad!!!

[my2000apb]

I finally have some axle spacer material coming.
gotta pull the driveshaft and get it balanced.
finish up a fuel hardline
and ill guess ill dig into the last of the prep for paint at the beginning of next week

progress shall commence, I cant be going another winter without some Turbo Quattro fun!!!!!!!!!!

[AngryTaco]

Its a good thing you bought that stuff from me. I was going to make a bom.....er soda can holder out of it
